Description

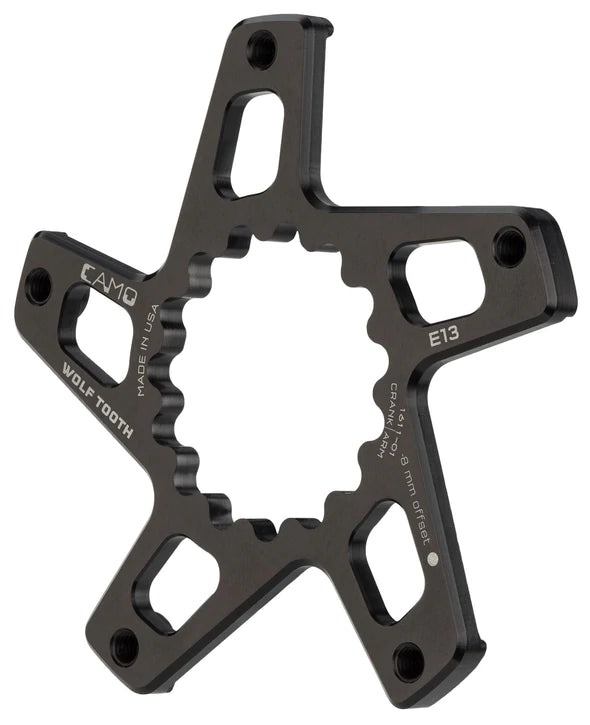

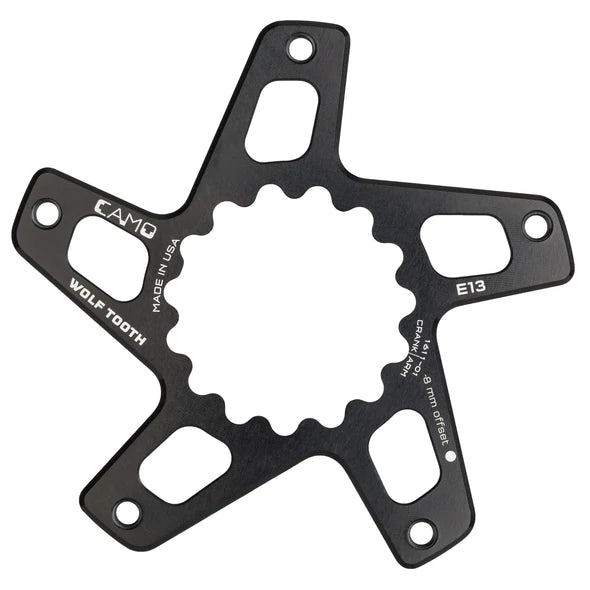

This is a spider for use with the E13 cranksets that have a removable spider.
The CAMO chainring system was created by Wolf Tooth engineers for Chainline And Material Optimization on direct mount style chainrings. The key advantages include:
-
Perfect chainline for wear and shifting precision
-
Optimal material usage for weight, stiffness, and wear
-
Spend less for chainring swapping by buying only the chainring, compared to chainrings that have an integrated spider
-
Swapping chainrings is very fast with only five small bolts and no nuts
-
Availability, as Wolf Tooth has many direct mount options: round or oval, stainless or aluminum, for several cranksets.
-
Color options add a bit of style to accent other colors of your bike or components
-
Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
Compatibility
- This is a spider for use with the E13 cranksets that have a removable spider
- One chainline option available. The number and letter refer to the mm offset and direction from the mounting face to the centerline of the teeth:
- CAMO mounting bolts can be purchased separately, but all the CAMO spiders come with stainless steel bolts if you don't order them.
- All Camo Spiders are not compatible with Bash Guide ISCG05
- Not compatible with XCX Race MTB cranks.
Installation notes:
- You will be able to access all bolts without removing the spider
- Line up the little dot on the ring with the dot on the spider. Don't worry, you cannot install the ring in the wrong rotational orientation.
- Be sure the bosses on the spider "plug in" to the chainring.
- Torque bolts only to 4-5 Nm and use blue Loctite threadlocker
