Description

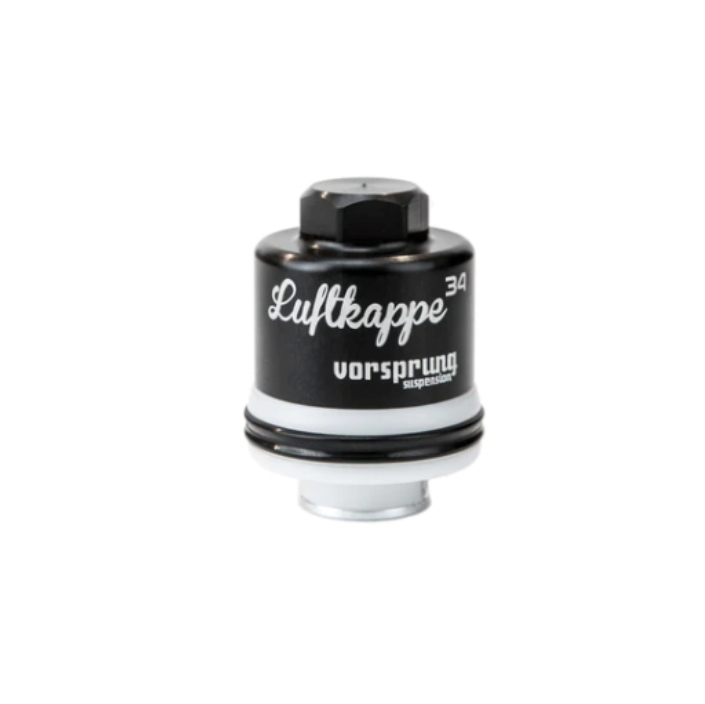

Vorsprung Luftkappe Air Piston Kit
Make a good fork a great fork.
Taking everything we learned with the Corset air sleeves, the Luftkappe is a new air piston assembly that enlarges the negative air chamber to reduce the initial spring rate. This lets you run higher air pressure for more support in the middle and end of the stroke with improved sensitivity in the start of the stroke. User installable and simple to set up, the Luftkappe transforms a good fork into a great fork.
![]() |
|
FOX 36 #LK-36EVOL
Fox 36 <2015 |
Not Compatible |
Fox 36 2015 (Float NA) - Performance & Factory Series |
LK-36NA |
Fox 36 2016 (Float NA) - Performance & Factory Series |
LK-36NA |
Fox 36 2017 (Float NA) - Performance & Factory Series |
LK-36NA |
Fox 36 2018+ (Float NA2 Evol) - Performance & Factory Series |
LK-36EVOL Note: If your MY2018 36 Evol tops out noticeably, you will need to replace your air shaft assembly before purchasing the Luftkappe. For 2019 onwards, Fox have updated this part due to the topout issues that many of the 2018 36 Evol forks had. 34 forks do not have this issue. Relevant Fox part numbers for the new air shaft assemblies, by travel: 180mm: 820-02-534-KIT 160mm: 820-02-536-KIT 150mm: 820-02-537-KIT 140mm: 820-02-538-KIT 100mm (36 831): 820-02-539-KIT If your fork does not have noticeable top-out issues, you don't need to replace the shaft before installing the Luftkappe. |
#LK-34
34 2016 (Float NA2) - Performance & Factory Series - 120mm & lower | Need 2018 EVOL airshaft, use LK-34/38EVOL |
Fox 34 2016 (Float NA2) - Performance & Factory Series - More than 130mm | LK-34NA (discontinued) |
Fox 34 2017 (Float NA2) - Performance & Factory Series - More than 130mm | LK-34NA (discontinued) |
Fox 34 2018-21 (Float NA2 Evol) - Performance & Factory Series - 27.5" (all travels) and 29" (140mm and lower only) | LK-34/38EVOL |
Fox 34 2018-2022 (Float NA2 Evol) - Performance & Factory Series - 29" (150mm and higher) | Not Compatible |
Fox 34 2022 | LK-34/38EVOL |
Fox 34 Stepcast 2019-2021 | LK-34/38EVOL |
Fox 34 Stepcast 2022 | Not Compatible |
